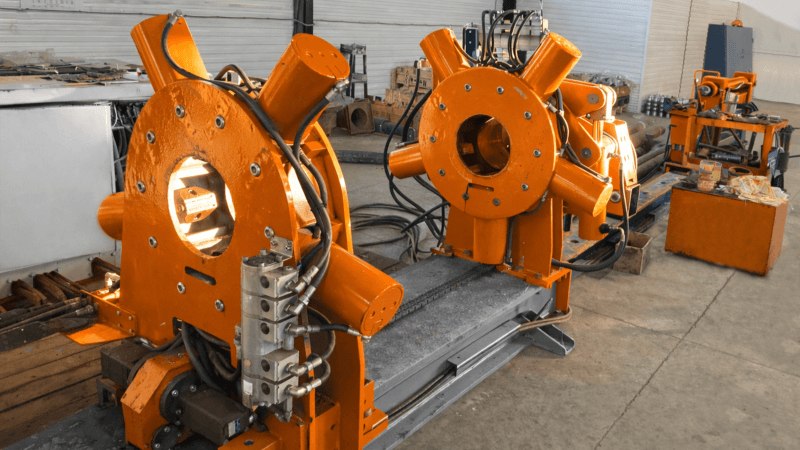

Assembler Guru 12
Contact an Expert
Specification
The most popular and sought-after model in our product line, the Assembler Guru 12 combines affordable cost with an extensive range of serviced equipment (including downhole motors up to size 9 ⅝", jars, and telemetry tools). This universal BOM covers over 80% of all tasks encountered in downhole tool maintenance. If you need a versatile workhorse – the Assembler Guru 12 is ready for you!
Technical Data
| Headstock Rotation angle | 36 deg. |
| OD Range | 2.4 in. - 11.5 in. (standard tong die), 1.5 in. - 11 in. (extra tong die) |
| Break-Out Torque (Max) | 90 000 lb-ft |
| Make-Up Torque | 500 to 65 000 lb-ft |
| Headstock / Tailstock Design | Fully closed |
| Spinner OD Range | 3 in.-14 in. |
| Spinner Torque (Max) | 1 700 lb-ft |
| Tailstock Traction Force | 5 200 lb |
| Press Force | 33 000 lb (push), 22 000 lb (pull) |
| Console Operating Pressure | 2 900 psi |
| Base Unit Dimensions (L × W × H) | 590 × 50 × 70 in. |
| Console Dimensions (L × W × H) | 60 × 38 × 45 in. |
