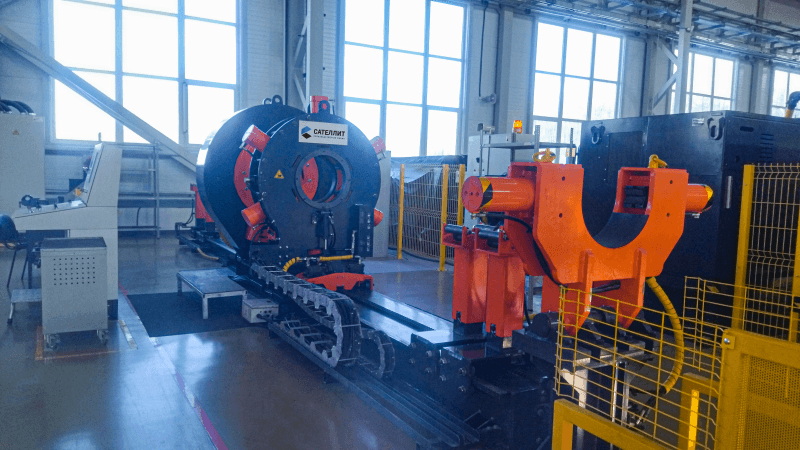

Assembler FR 90
Contact an Expert
Specification
The Assembler FR 90 Break-Out Machine is an absolute monster, delivering a commanding 90,000 lb-ft of torque that sets the standard on any job site, regardless of complexity. Its raw power, combined with a 6-point grip system, effortlessly masters connections from 2.3 to 14 inches, guaranteeing flawless makeup or breakout with zero risk of damaging thin-walled components. This tool eliminates 98% of all standard requirements—built exclusively for those who operate with uncompromising force.
Technical Data
| Headstock Rotation angle | 360 deg. |
| OD Range | 3 in. - 14 in. (standard tong die), 2.3 in. - 13 in. (extra tall tong die) |
| Torque (Max) | 90 000 lb-ft |
| Tailstock Traction Force | 2 600 lb |
| Console Operating Pressure | 2 900 psi |
| Base Unit Dimensions (L × W × H) | 512 × 65 × 75 in. |
| Hydraulic Station Dimensions (L × W × H) | 83 × 63 × 65 in. |
