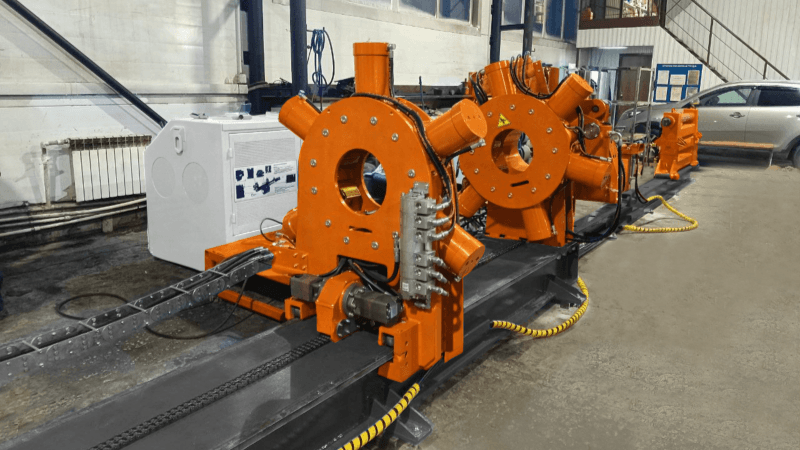

Assembler Expert 27
Contact an Expert
Specification
When Standard Power Isn't Enough. This BOM is engineered for extreme duty: with a peak breakout torque of 200,000 lb-ft and makeup torque of 150,000 lb-ft, it effortlessly handles the most critical and seized connections in the oilfield. Thanks to its new design with reinforced clamping cylinders, we didn't just boost the specs — we guaranteed an unprecedented safety margin and eliminated the risk of slippage, even under maximum load. This isn't an evolution; it's a breakthrough. The wrench that dominates where others fail. The choice of professionals for whom "won't budge" is not a problem, but a challenge.
Technical Data
| Headstock Rotation angle | 36 deg. |
| OD Range | 3 in. - 18 in. (standard tong die), 2.3 in. - 17 in. (extra tall tong die) |
| Break-Out Torque (Max) | 200 000 lb-ft |
| Make-Up Torque | 3 500 to 150 000 lb-ft |
| Headstock / Tailstock Design | Fully closed |
| Spinner OD Range | 3 in.-14 in. |
| Spinner Torque (Max) | 1 700 lb-ft |
| Tailstock Traction Force | 5 200 lb |
| Press Force | 33 000 lb (push), 22 000 lb (pull) |
| Console Operating Pressure | 2 900 psi |
| Base Unit Dimensions (L × W × H) | 590 × 60 × 75 in. |
| Console Dimensions (L × W × H) | 60 × 38 × 45 in. |
