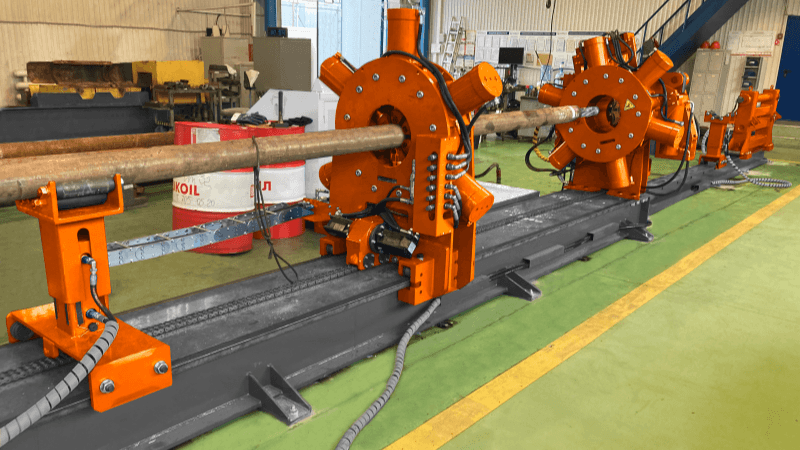

Assembler Advanced 16
Contact an Expert
Specification
Power knows no bounds. 145,000 lb-ft of torque for the most extreme challenges in the oilfield. This is our high-capacity beast, engineered to handle parts up to 14 inches. It’s not just a tool—it’s your ultimate advantage. Unrivaled flexibility. Uncompromising versatility. This is the one you choose when you face a wild mix of largediameter connections and demand nothing less than maximum uptime and absolute reliability. Don’t just meet the standard. Dominate it.
Technical Data
| Headstock Rotation angle | 36 deg. |
| OD Range | 3 in. - 14 in. (standard tong die), 2.3 in. - 13 in. (extra tall tong die) |
| Break-Out Torque (Max) | 145 000 lb-ft |
| Make-Up Torque | 3000 to 115 000 lb-ft |
| Tailstock Design | Hinged closed |
| Spinner OD Range | 3 in.-14 in. |
| Spinner Torque (Max) | 1 700 lb-ft |
| Tailstock Traction Force | 5 200 lb |
| Press Force | 33 000 lb (push), 22 000 lb (pull) |
| Console Operating Pressure | 2 900 psi |
| Base Unit Dimensions (L × W × H) | 590 × 57 × 71 in. |
| Console Dimensions (L × W × H) | 60 × 38 × 45 in. |
