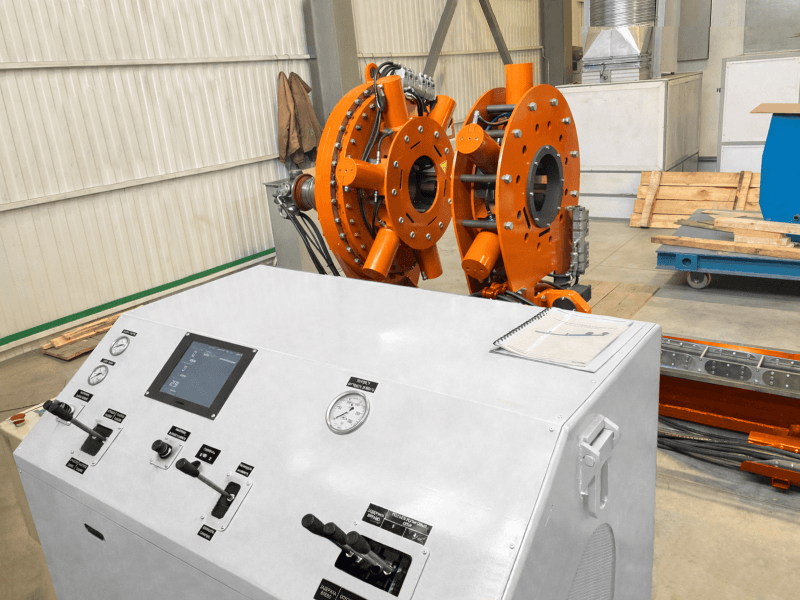

Assembler FR 44
Contact an Expert
Specification
Break-out Machine FR 44 — the flagship full-rotate hydraulic wrench for critical operations. With 44,000 lb-ft of torque and a unique 6-point clamping system, it guarantees perfectly uniform force, eliminating the risk of deformation in thin-walled pipes and flanges. Its wide operating range covers over 85% of high-torque connections, including the strictest standards in energy and pipeline sectors. The choice for uncompromising reliability, precision, and equipment safety.
Technical Data
| Headstock Rotation angle | 360 deg. |
| OD Range | 2.4 in. - 11.5 in. (standard tong die), 1.5 in. - 11 in. (extra tall tong die) |
| Torque (Max) | 44 000 lb-ft |
| Tailstock Traction Force | 2 600 lb |
| Console Operating Pressure | 2 900 psi |
| Base Unit Dimensions (L × W × H) | 512 × 60 × 71 in. |
| Console Dimensions (L × W × H) | 80 × 49 × 49 in. |
