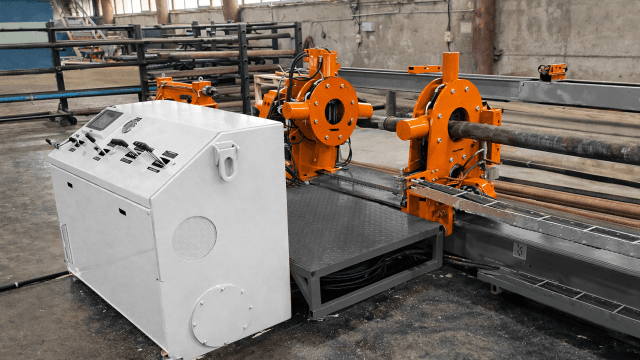

Assembler 8 Tool
Contact an Expert
Specification
Ideal Break-Out Machine for high-speed make-up and break-out of downhole motors (up to 5") and other tools with an OD up to 8.5". Essential for service centers maintaining telemetry and drilling equipment.
Technical Data
| Headstock Rotation Angle | 36 deg. |
| OD Range | 1.8 in. – 8.5 in. (standard tong die), 1.2 in. – 8 in. (extra tall tong die) |
| Break-Out Torque (Max) | 55,000 lb-ft |
| Make-Up Torque | 500 to 40,000 lb-ft |
| Headstock / Tailstock Design | Fully closed |
| Spinner OD Range | 3 in. – 14 in. |
| Spinner Torque (Max) | 1,700 lb-ft |
| Tailstock Traction Force | 5,200 lb |
| Press Force | 33,000 lb (push), 22,000 lb (pull) |
| Operating Pressure | 2,900 psi |
| Base Unit Dimensions (L × W × H) | 590 × 50 × 58 in. |
| Console Dimensions (L × W × H) | 60 × 38 × 45 in. |
